| Rated Voltage | AC 125V | AC 250V | DC 24V | |
| Non-Inductive Current | 20A | 10A | 10A | |
| Inductive Current | Full Load Current | 15A | 8A | 8A |
| Locked Roter | 72A | 64A | ||
| Modle |
Pressure Range(bar) |
Differential Pressure(bar) | Factory Setting(bar) | Max.gas tight test Pressure(bar) | |

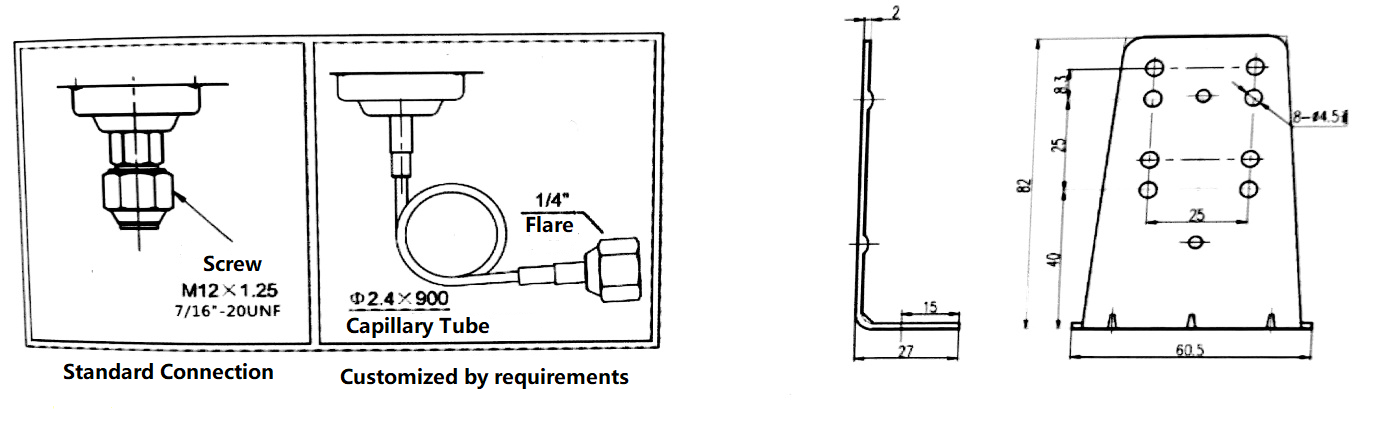

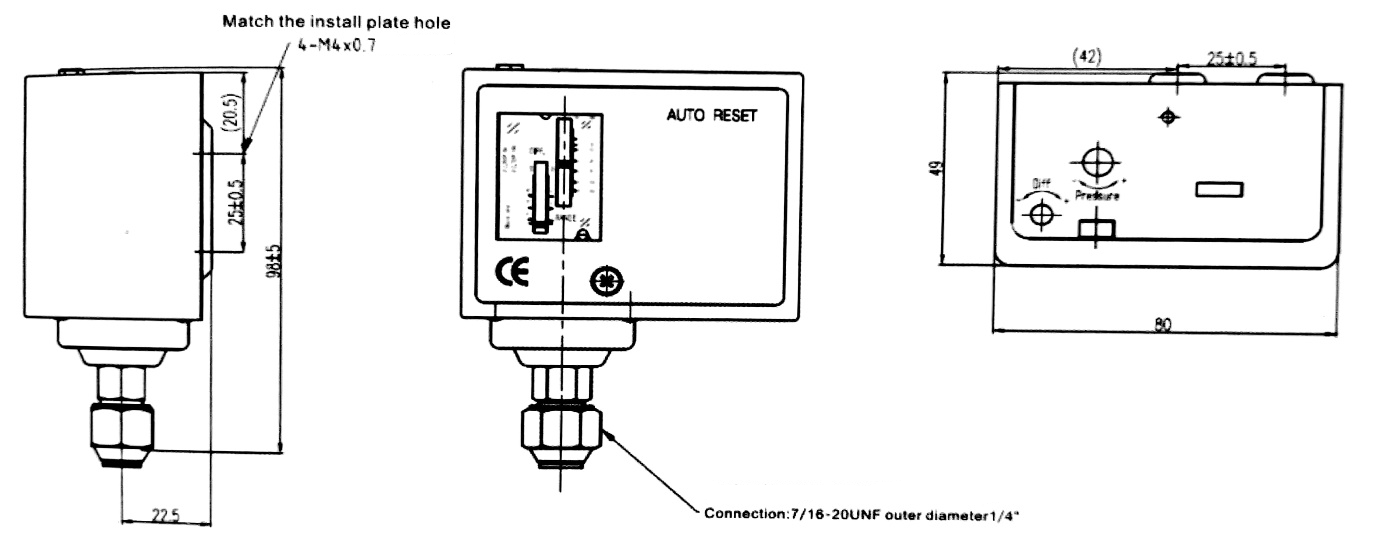

| Fig.1 | Fig.2 | ||||
| P502 | -0.5~2 | 0.2~0.7 | 1 | 0.5 | 16.5 |
| P503 | -0.5~3 | 0.35~1.5 | 2 | 1 | 16.5 |
| P506 | -0.5~6 | 0.6~4 | 3 | 2 | 16.5 |
| P506M | -0.5~5.5 | ≤1 | Manual reset | 2 | 16.5 |
| P110 | 1~10 | 1~3 | 6 | 5 | 16.5 |
| P516 | 5~16 | 2~5 | 10 | 8 | 33 |
| P520 | 5~20 | 2~5 | 16 | 14 | 33 |
| P530D | 5~30 | 3~10 | 20 | 15 | 33 |
| P530 | 5~30 | 3~5 Fixation | 20 | 15~17 | 33 |
| P503M | 5~30 | ≤5 | 20 | Manual reset | 33 |
