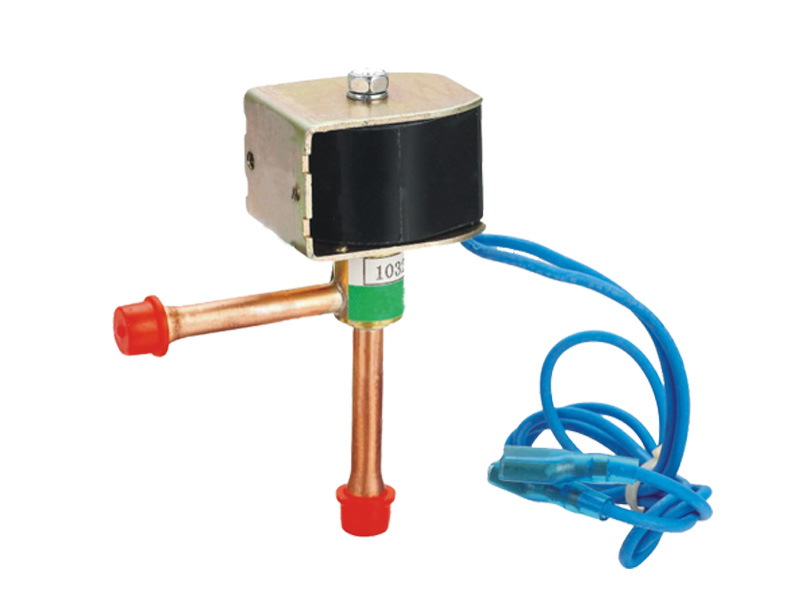

FDF Series Solenoid Valve

  • Product Details

Product Introduction
FDF type is a kind of mini-flow solenoid valve, which is mainly used for adjusting the defrost and controlling the refrigerant flow direction of the refrigeration system. At present it is widely used in air-conditioner, dehumidity unit and ice maker etc.
Technical parameter
Rated Voltage:AC220V AC110V DC24V
Frequency:50/60Hz
Max. operating pressure:3.0 Mpa 4.2Mpa
Suitable Refrigerant:R12,R22,R502,R134a,R407c,R410a etc
Fluid permission temperature:-30℃~+120℃
Internal leakage:FDF2A=300ml/min, FDF6A=500ml/min(with 2.1Mpa air)
Service Life:>100,000 times
Coil temperature rise:s80K

Model Port Size(mm) Connection size(mm) O.P.D(Mpa) Max. Working
Pressure(Mpa)		 Motion type
FDF-2A 2 6.5 0 2.1 3.0 Normal close
FDF-3A 3 6.5 0 2.1 3.0 Normal close
FDF-6A 5.8 8.0 0 2.5 3.0 Normal close
FDF-6AK 5.8 8.0 0 2.5 3.0 Normal open
